Details
Breaking Boundaries

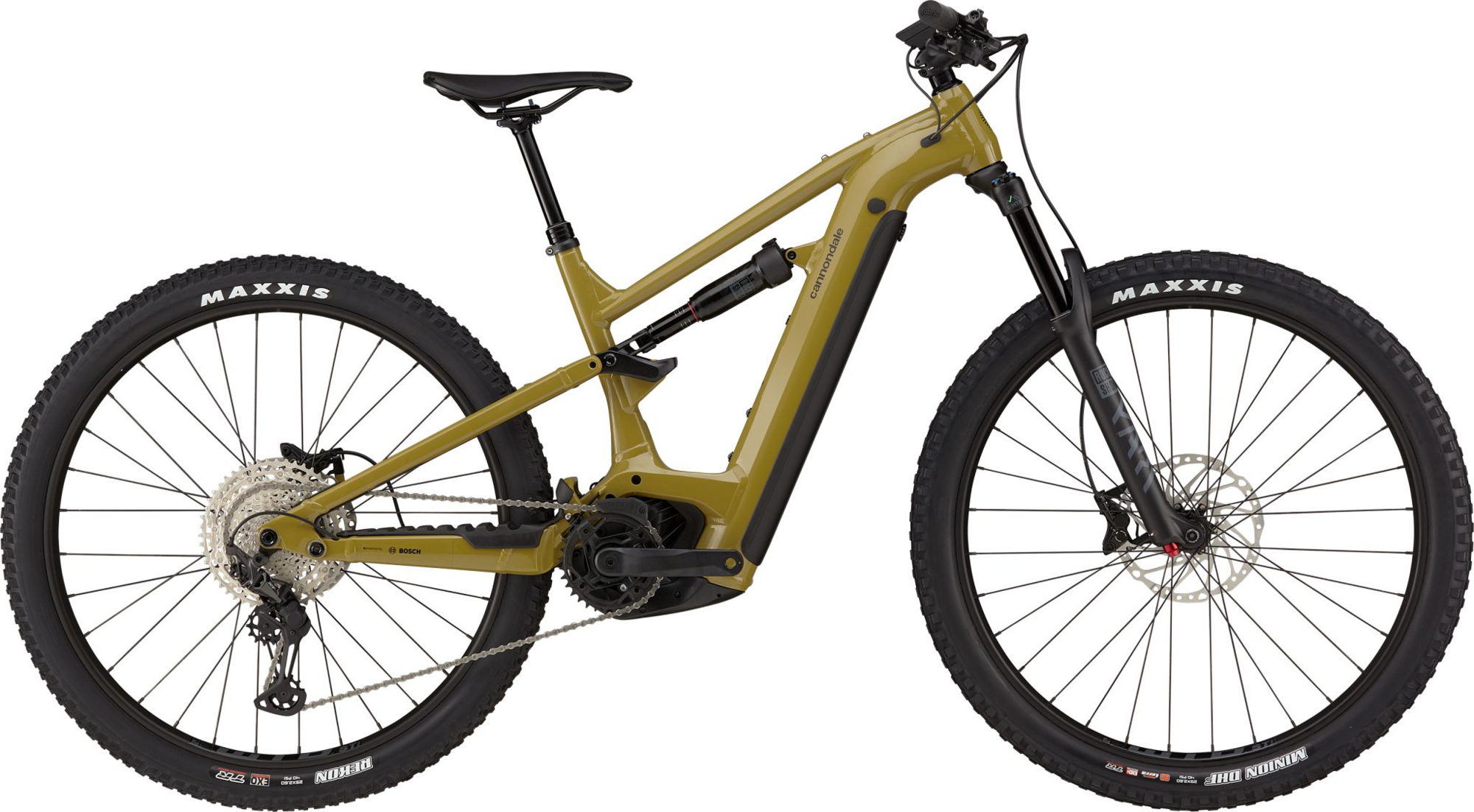

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.
Where it thrives
Challenging trails, Up and down hills, Out in the elements
What it's built for
Handling, Traction, Efficiency, Durability
Highlights:
- Proportional Response Tuned SmartForm Alloy frame / RockShox Yari RC fork, 150mm travel
- Bosch SmartSystem - 750wh battery & Performance CX motor
- Shimano XT/Deore 12-speed drivetrain
From the high mountains to your local loops, this e-MTB will take you to a whole new level. Agile and quick on the climbs, stable and composed on even the nastiest descents, it makes the easy trails fun, and the hard trails electrifying. It’s the kind of machine that makes you lust for the next ride.
Built for You
Power and range are just the beginning. What makes the Moterra really shine is how it handles. With our Proportional Response size-specific design, each frame size gets its own unique suspension layout, geometry, and frame construction, so it handles like it was built just for you. Because it was.
Trail riding perfection
With 150mm of travel front and rear, tons of power and incredibly capable components, this rig is at home on any trail, anywhere.
Bosch power
Climb higher. Shred harder. Ride further. With the largest battery and most powerful drive unit from the most respected name in e-bikes, there's no such thing as "can't".
Ride easy
Life is hard enough, so we made it easier. Simple battery removal, rack and fender mounts, kickstand compatibility, and room for a water bottle on all sizes.
Small | 5'1" - 5'5" |
---|---|
Medium | 5'4" - 5'9" |
Large | 5'8" - 6'1" |
X-Large | 6'0" - 6'5" |
Specs
Pedals | Sold Separately |
---|---|
Motor | Bosch Performance Line CX 250W |
Battery | Shimano BT-EN8036, 630Wh |
Charger | Bosch 4A |
Controller/Display | Bosch Kiox 300 w/ LED remote |
Fork | SR Suntour Zeron 36 Boost, 140mm, Air, rebound adjust,tapered steerer, 44 mm offset |
Hubs | (F) Shimano TC500, 15x110mm thru-axle, centerlock / (R) Shimano TC500, 12x148mm thru-axle, centerlock |
Rims | WTB ST i30 TCS, 32h, tubeless ready |
Stem | Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 6° |
Chain | Shimano LG500 Linkglide, 11-speed |
Frame | 150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube |
Tires | WTB Breakout Comp, 29x2.3", DNA compound |
Brakes | Shimano MT200 hydraulic disc, 180/180mm RT10 rotors |
Saddle | Cannondale Stage 3 |
Spokes | Stainless Steel, 14g |
Headset | Integrated, 1-1/8 to 1.5", sealed bearings |
Crankset | FSA E-Bike for Shimano, 165mm, 34T |
Seatpost | TranzX dropper, internal routing, 31.6, 120mm (S), 130mm (M-XL) |
Shifters | Shimano CUES U6000, trigger style, 11-speed |
Handlebars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
Rear Shock | X-Fusion O2 Pro Air, adjustable rebound, lock-out |
Tape/Grips | Cannondale Locking Grips |
Brake Levers | Shimano MT200 hydraulic disc |
Rear Derailleur | Shimano CUES U6000, 11-speed |
Cassette/Freewheel | Shimano CUES LG400, 11-50, 11-speed |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Olive Green / X-Large / 29-inch | 884603965436 | C65372U30XL | |
Olive Green / Medium / 29-inch | 884603965412 | C65372U30MD | 210000023065 |
Olive Green / Large / 29-inch | 884603965429 | C65372U30LG | 210000023064 |
Olive Green / Small / 29-inch front / 27.5-inch rear | 884603965405 | C65372U30SM |
